Description:

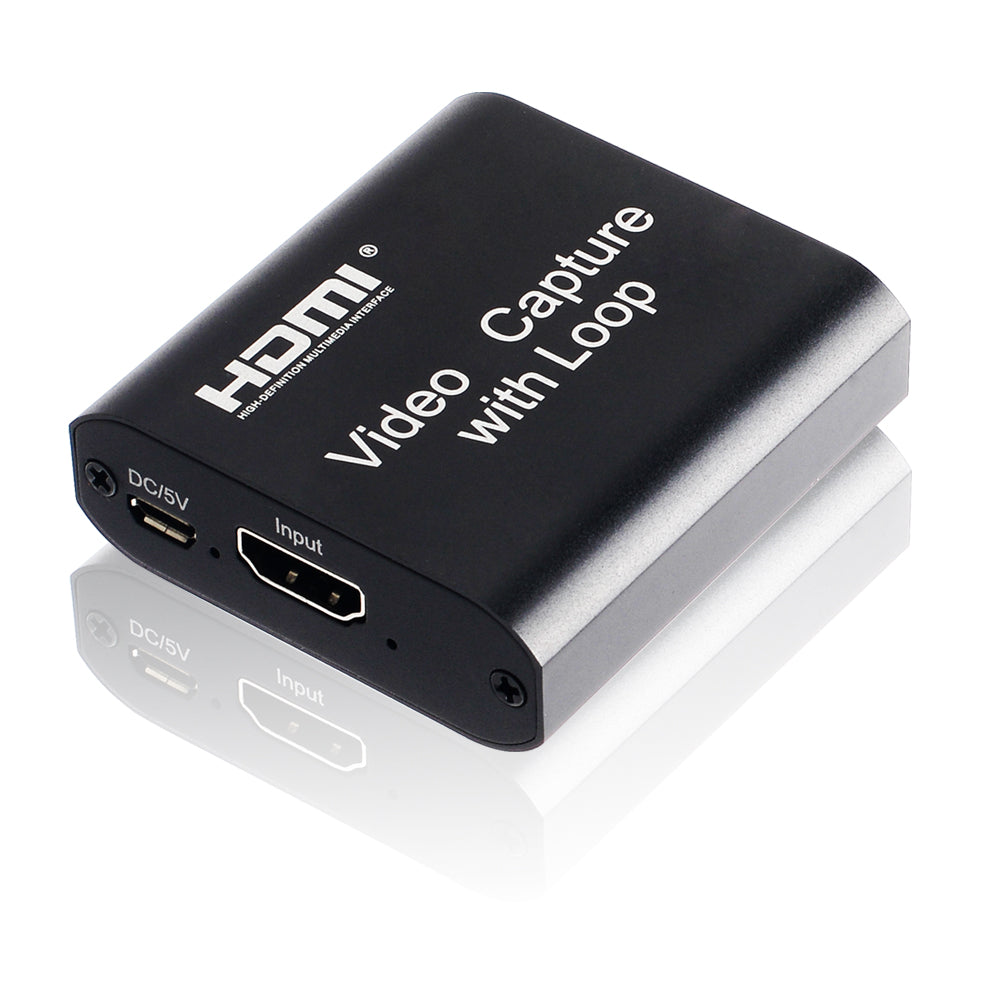

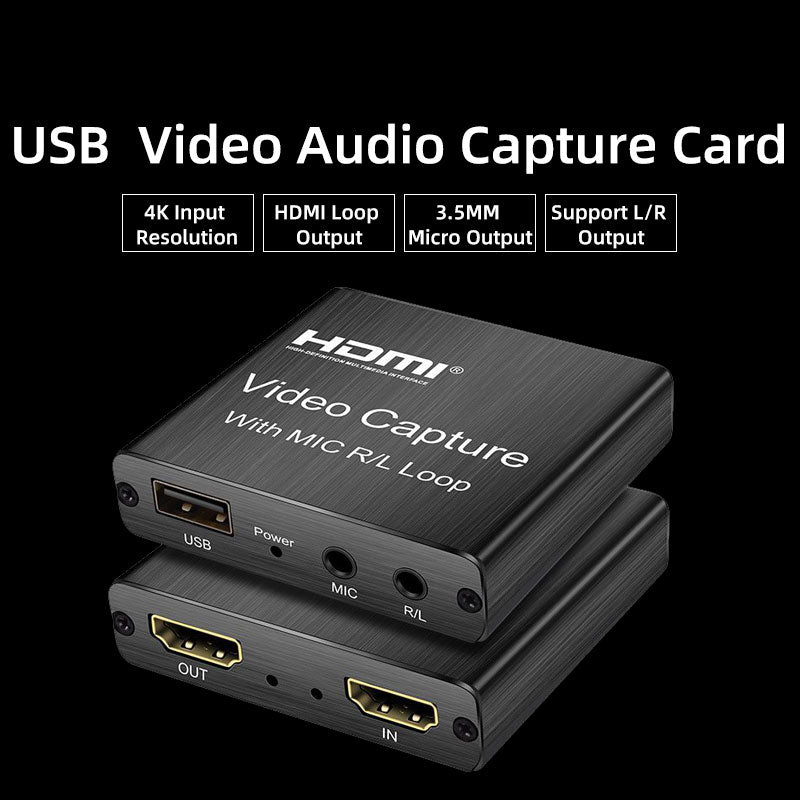

This USB capture card can collect HDMI audio and video. HDMI audio and video signals can be transmitted to the computer and smartphone for preview and storage.
Suitable for high-definition acquisition, teaching recording, medical imaging, etc.
Features:
1. Support input resolution up to 4K
2. Support output resolution up to 1080P
3. One HDMI input, One HDMI loop out, Watching and Recording
4. One Microphone input
5. One 3.5mm stereo output
6. Support 8/10/12 bit color depth
7. Support AWG26 HDMI standard cable, the maximum input transmission distance is 15 meters (1080P and below resolution)
8. Support most acquisition software, such as VLC, OBS, Amcap, etc.
9. Support Windows, Android and MacOS
10. Complies with USB video UVC specifications
11. Complies with USB audio UAC specifications
12. No external power supply, compact size, easy to carry
Specification:
HDMI resolution: Maximum input support 4K
Video input format: 8/10/12-bit color depth
Video output mode: MJPEG
Video output resolution: Maximum output resolution 1080P @ 60Hz
Support audio format: PCM
Input cable length. ≤15m, AWG26 HDMI standard cable
Maximum working current: 0.4A / 5V DC
Operating temperature range: (-10 to + 55 ℃)
Product size(LxWxH): 68x27x9(mm)
Product weight: 100g
Note:
Computer hardware configuration requirements
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT35M or above
Storage: 4G RAM
Packing list:
1 x capture card
1 x USB data cable
1 x Micro USB power cord
1 x Instruction manual
